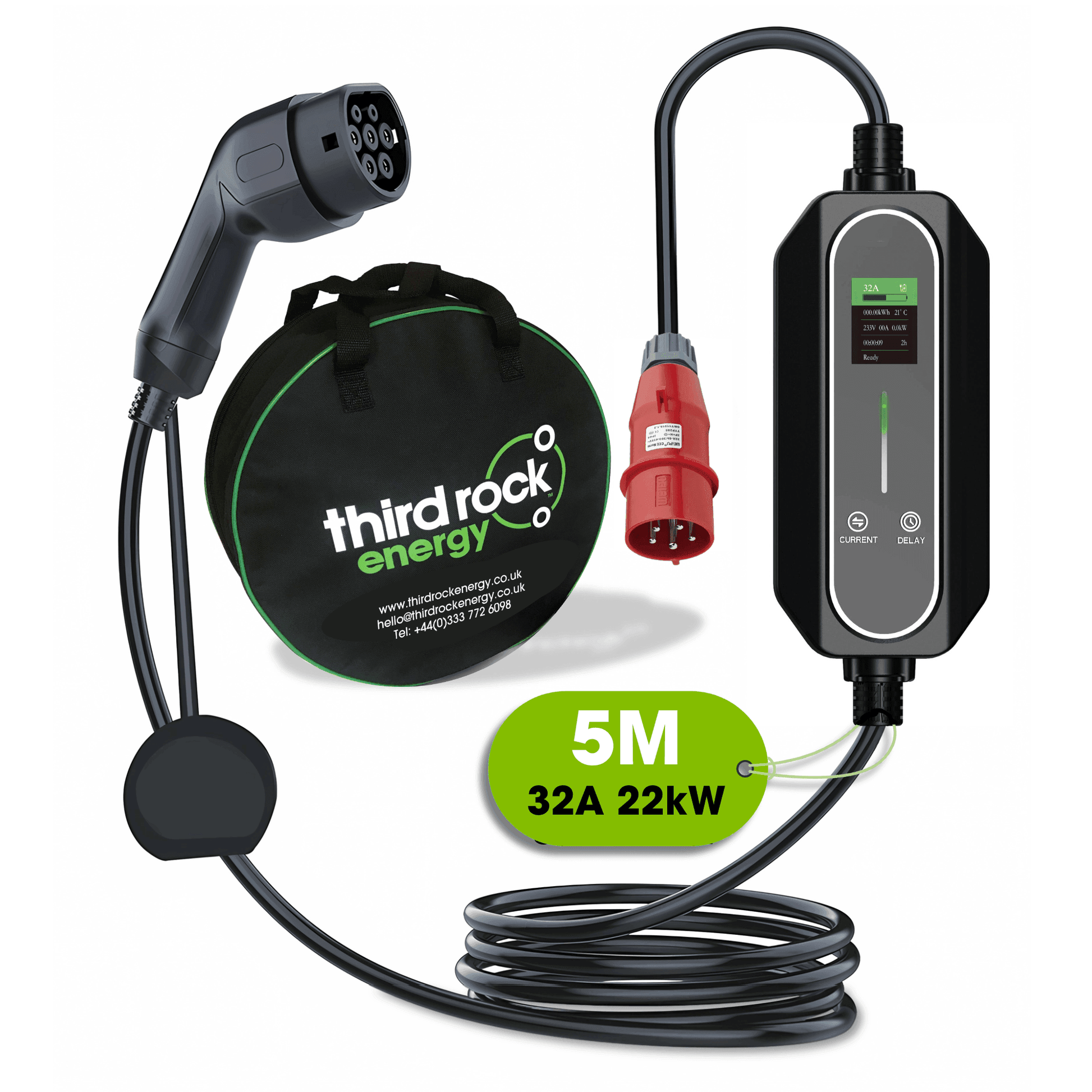

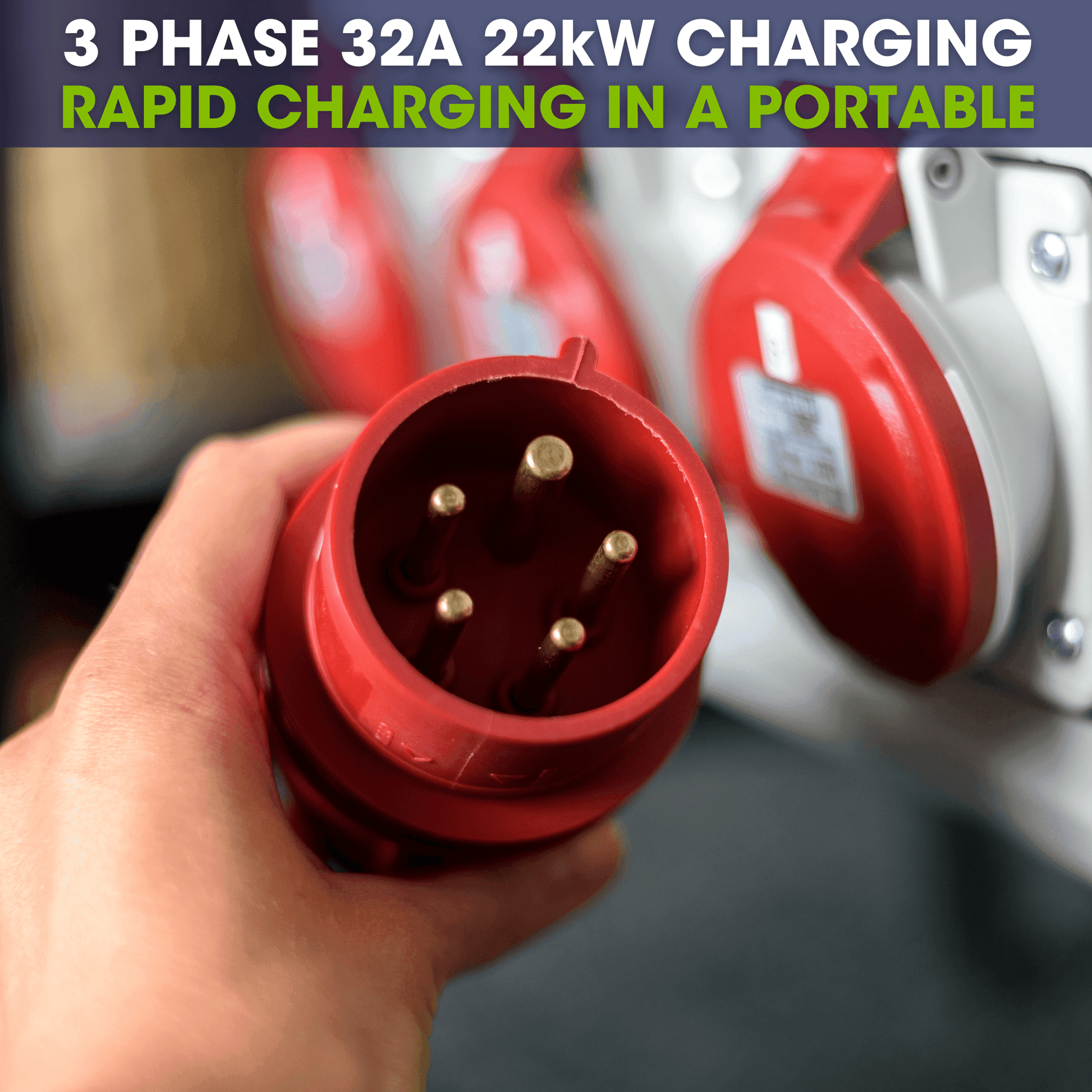

Type 2, 3 Phase Portable EV Charger to 5 pin Plug, 400V, 32A Variable, 22kW, 5 Metre

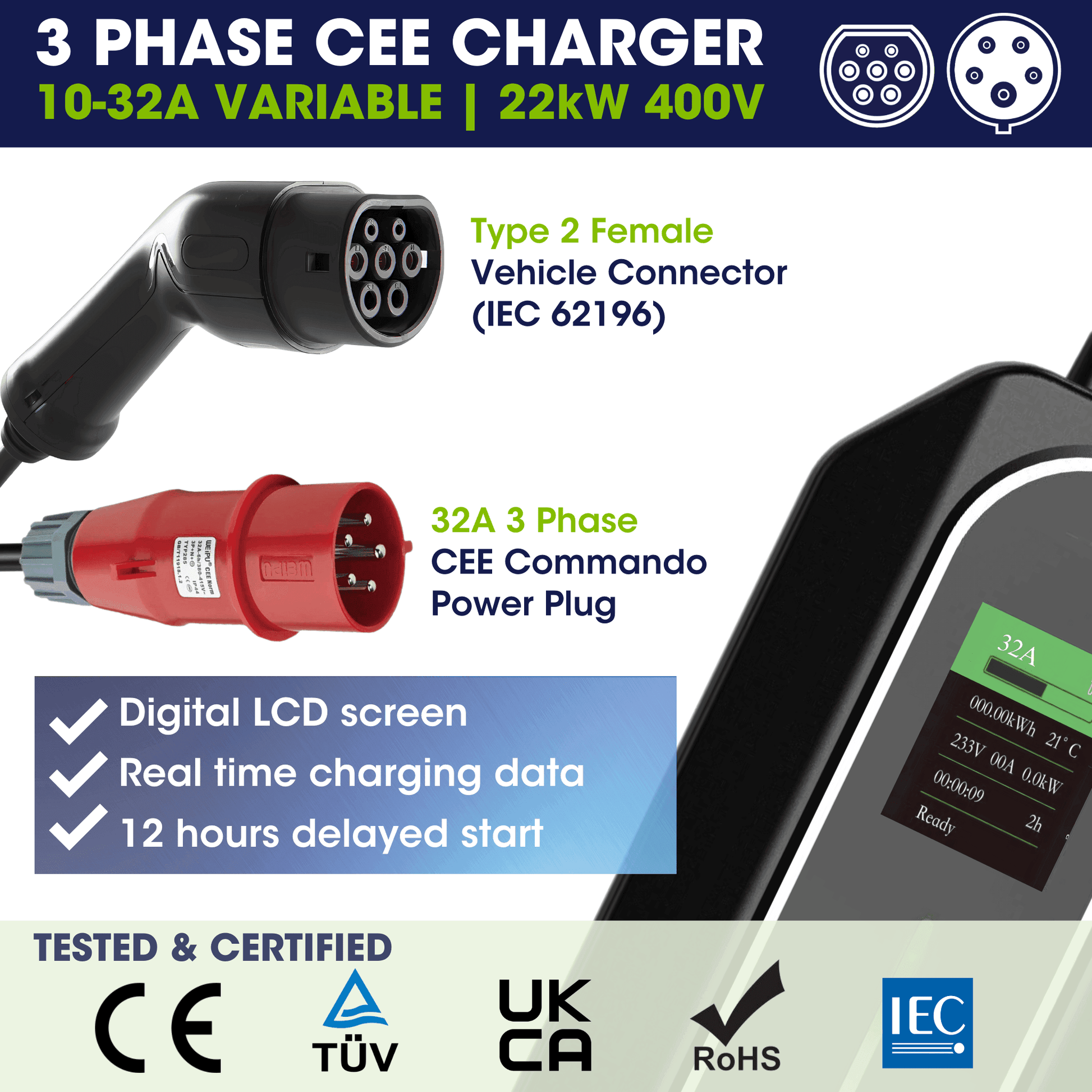

Type 2 Premium 3 Phase Portable EV Charger with LCD Display and Time Delay | 10A to 32A Variable | 400V | 22kW

Mobile charging solution that allows you to rapidly charge your electric vehicle in locations with a 3 phase electricity supply.

• Adjustable current with up to 22kW of power (11Kw AC charging)
• 5 charging speeds: 10A, 16A, 20A, 24A, 32A
• Built-in Type B RCD protection: Type A + 6mA DC
• LCD screen with real-time charging data
• Delayed start time by up to 12 hours

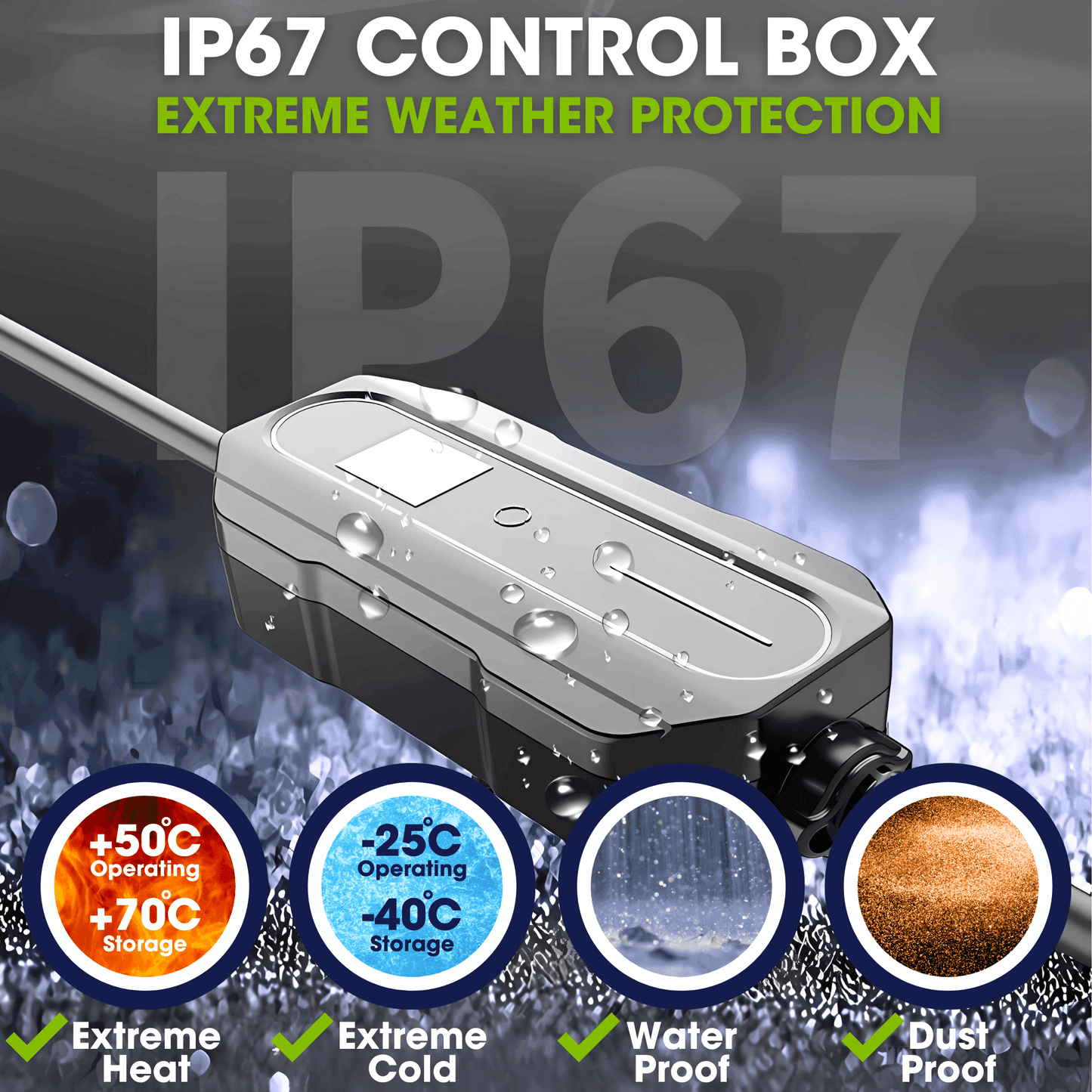

• IP67 dust and waterproof protection
• CE and TUV certified
• 2 year warranty

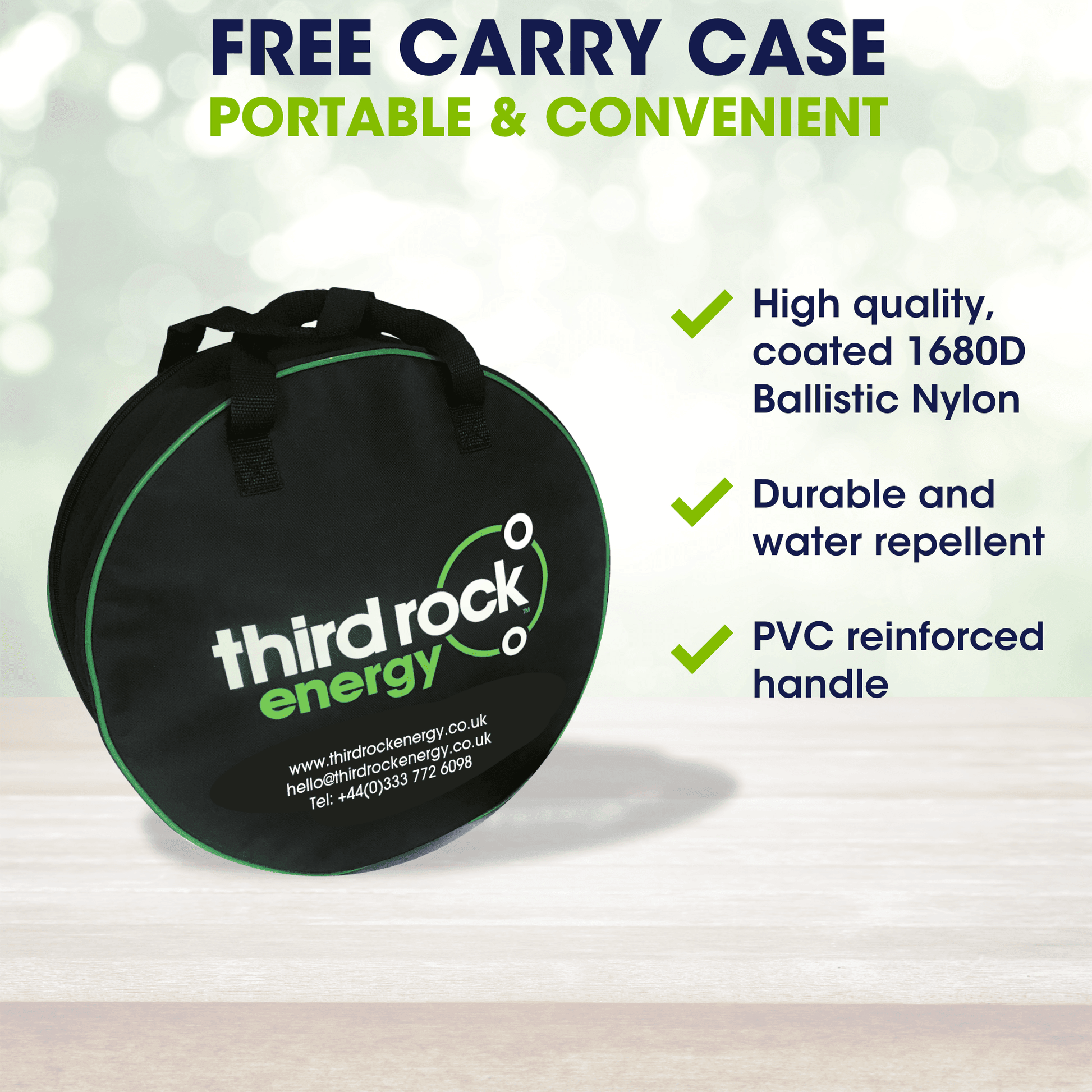

• Free carry case
• Data sheet

PLEASE NOTE - This charger is capable of delivering 22kW of charge however most EVs will only accept 11kW from an AC charger.

SAFETY INFORMATION

• Ground protection Yes
• Leakage current protection AC 30mA DC 6mA
• Over current protection Yes
• Over voltage protection Yes
• Under voltage protection Yes
• Over temperature protection Yes
• Short circuit protection Yes
• Lightning surge protection Yes
• Self-diagnosis of faults Yes

Please ensure that the sockets you use have been installed by a qualified electrician. Sockets must be installed on a system with a PME detection device.
