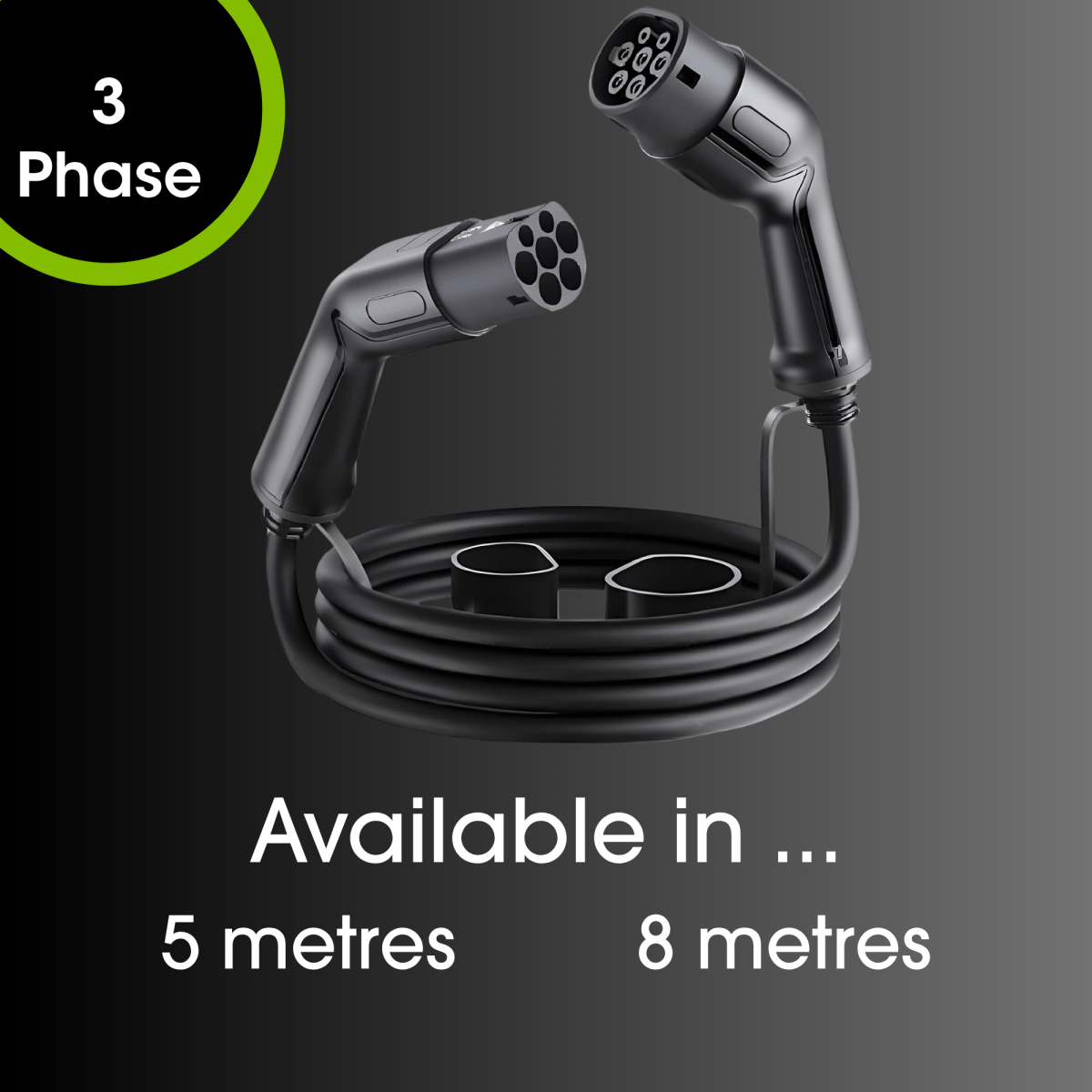

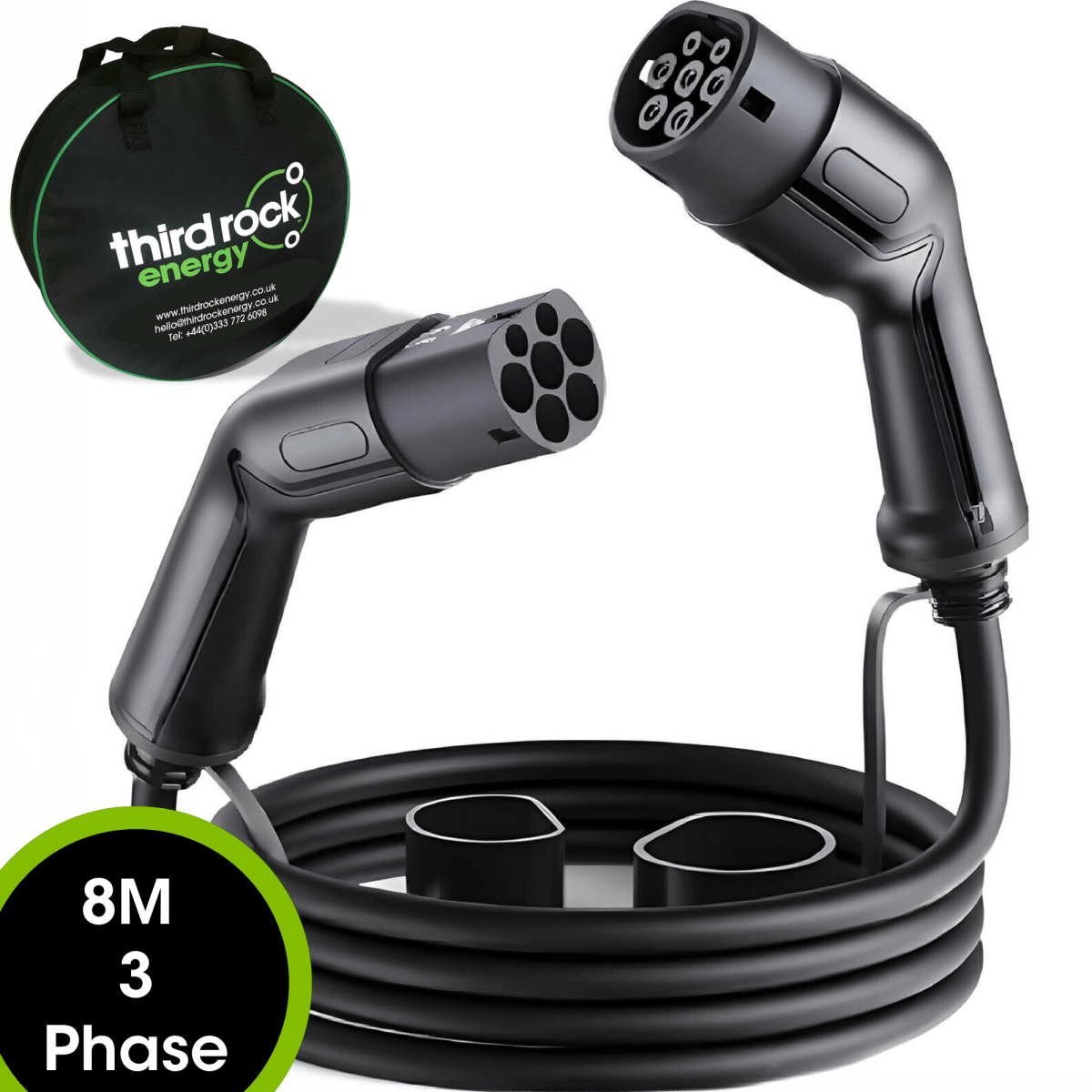

Type 2 to Type 2 EV Charging Cable | 3 Phase | 32A | 480V | 22kW
- Super fast and reliable 22kW charging
- Compatible with all Type 2/CCS2 EV inlets
- IP55 rated water and dust protection
- CE and TUV certified
- 2 year warranty
- Free carry bag
- Data sheet
Three phase 22kW EV charging cables are a versatile and future proof solution. They are compatible with both three phase and single phase charging stations, and allow you to receive the maximum output from each type of EV station.
When using a 3 phase charge point, this powerful EV cable will allow you to receive the full 22kW of charging power from the charge point and achieve super-fast charging of your vehicle (as long as your EV is able to receive 22kW). For single phase charging, this EV cable is still compatible, and will allow you to receive the maximum output on offer, whether that is 11kW, 7.4kW or 3.6kW. This is because the EV cable supports a maximum output of 22kW but it also supports lower outputs of 11kW, 7.4kW and 3.6kW, meaning that wherever you are, you'll always be able to use your EV cable and achieve the maximum output available.
Three phase cables are designed for use anywhere you can access an EV charging station. When using public charging stations with a three phase supply, these cables will usually charge your vehicle seven times faster than a UK 3 pin plug-in charger and three times faster than a 7.4kW single phase cable. However, this will depend on the type of vehicle you own.
The longer length of this 8 metre EV cable also gives you increased charging options and reduces trip hazards. The greater span allows you to reach much further which is particularly useful on busy streets and car parks, for multi-car homes, or where there is a longer driveway in place. It is also much safer as the EV cable can hang loose instead of taut which minimises the risk of trips and falls.
All of our charging cables are rigorously tested to ensure they are of the highest quality and fully compliant with all UK and European safety standards. This EV cable also comes complete with a 2 year warranty for extra protection and peace of mind.
Please note: This EV cable connects an electric vehicle to a charging point. It is not an extension cable, and therefore it cannot be used to extend from another cable.
Before purchasing... Check which connection Type your car needs?
Type 1 Vehicles – These vehicles will have 5 connection points plus one clip in connection above.
Type 2 Vehicles – These vehicles will have 7 connection points.
As a final check, please see the close-up images of the connection on this listing which you can compare to your vehicles charging socket.
Please see below some examples of charging speeds based on various vehicle battery sizes and the speed of your cable. This is provided as a guide only and assumes that the 22kW cable is being used with a 22kW charging station.
22kW cable
22kWh Vehicle 1 hr
44kWh Vehicle 2 hrs
88kWh Vehicle 4 hrs
This 22kW EV cable with black connector plugs is a new addition to our range and was introduced in December 2023.
