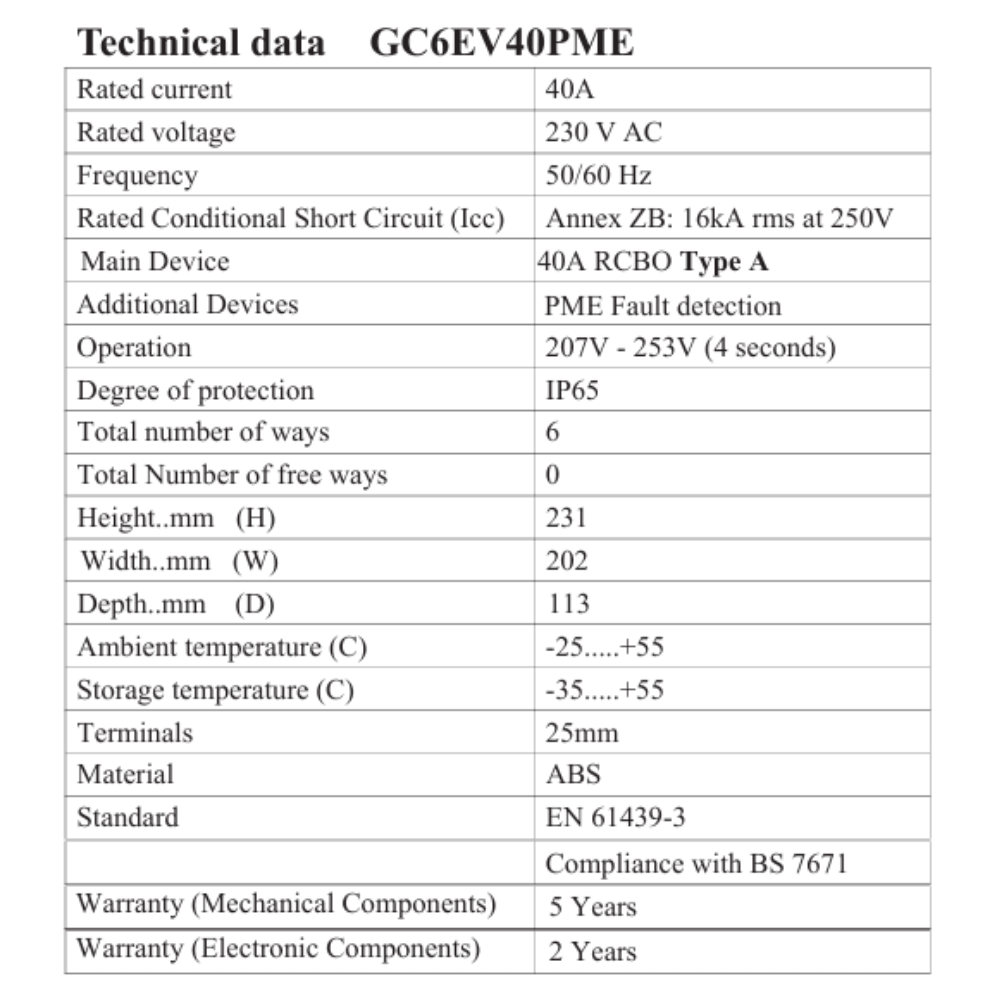

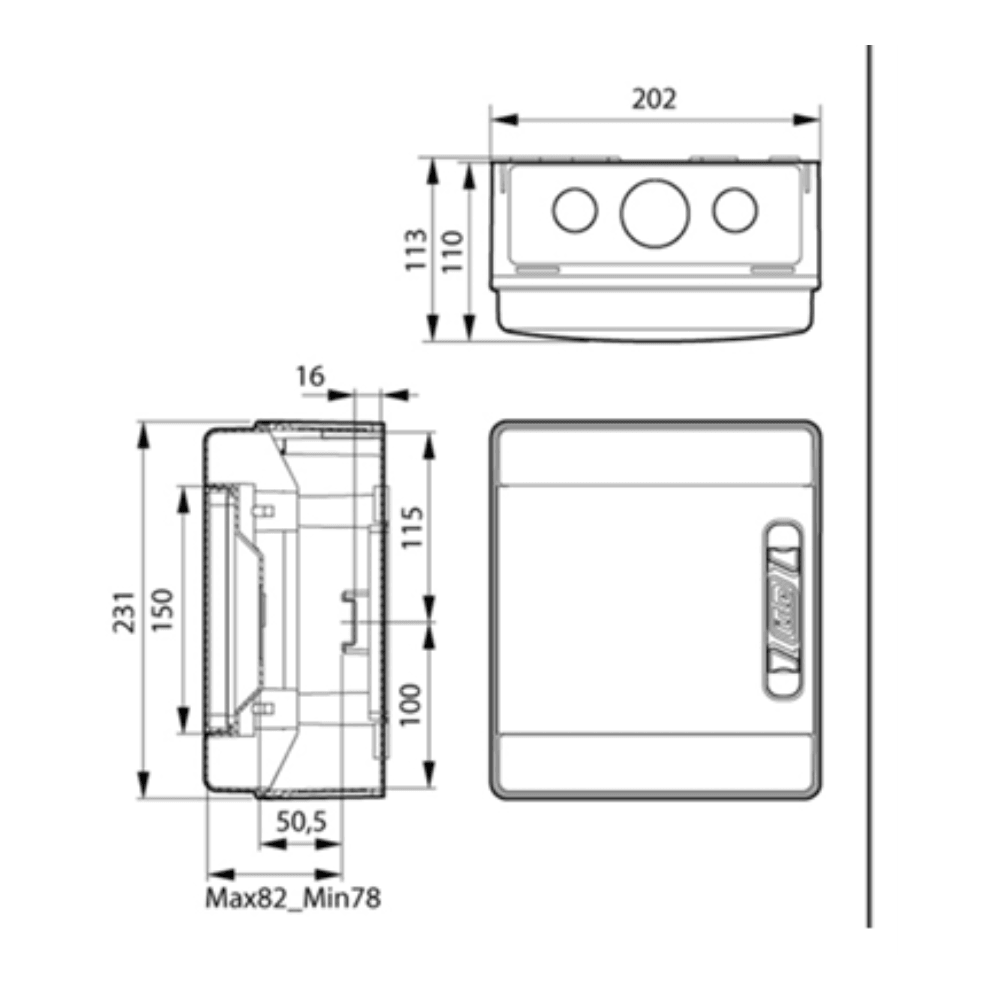

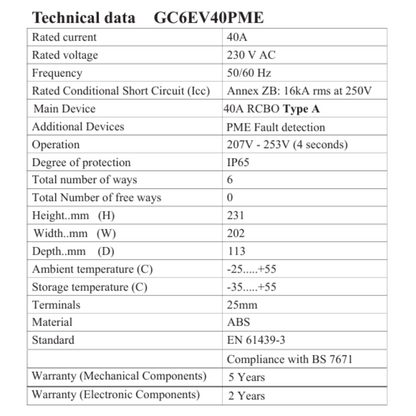

Rated current 40A Rated voltage 230 V AC Frequency 50/60 Hz Rated Conditional Short Circuit (Icc) Annex ZB: 16kA rms at 250V Main Device 40A RCBO Type A Additional Devices PME Fault detection Operation 207V - 253V (4 seconds) Degree of protection IP65 Total number of ways 6 Total Number of free ways 0 Height..mm (H) 231 Width..mm (W) 202 Depth..mm (D) 113 Ambient temperature (C) -25.....+55 Storage temperature (C) -35.....+55 Terminals 25mm Material ABS Standard EN 61439-3 Compliance with BS 7671 Warranty (Mechanical Components) 5 Years Warranty (Electronic Components) 2 Years

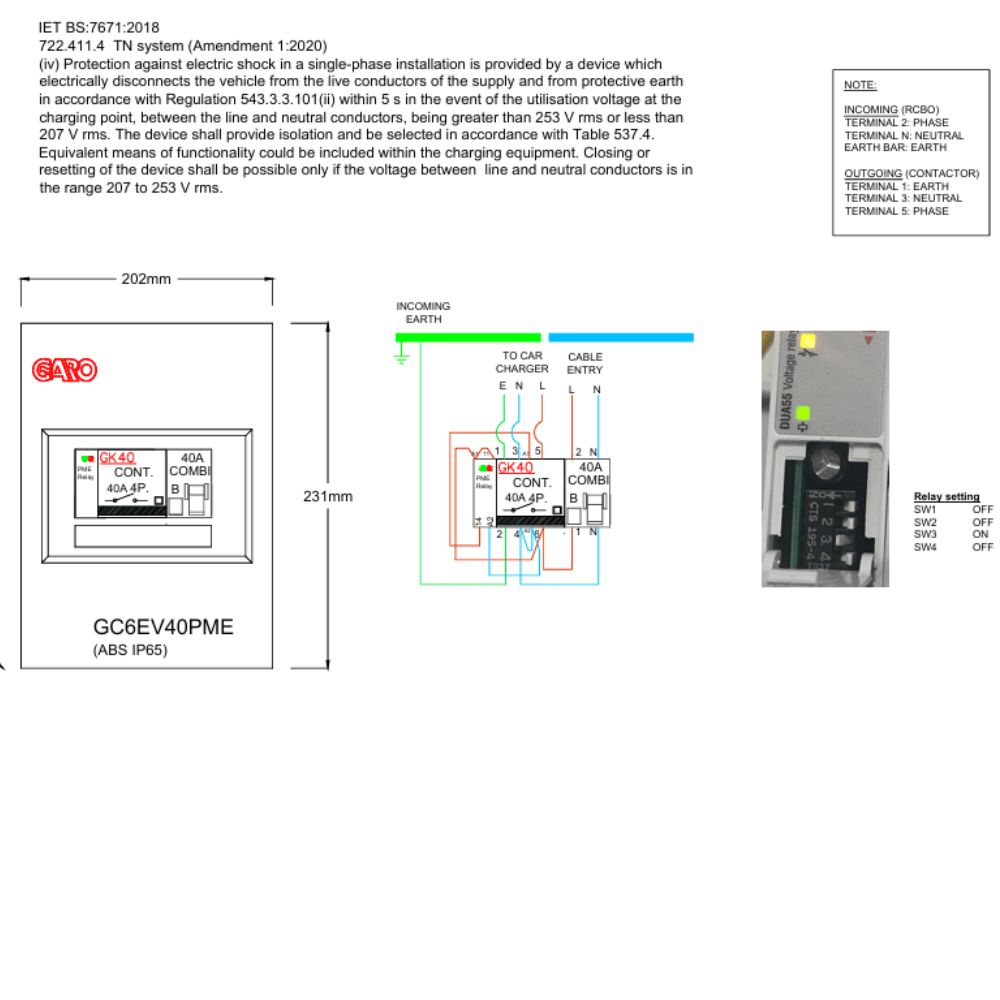

PME IET BS:7671:2018 - 722.411.4 TN system (Amendment 1:2020) definition
Protection against electric shock in a single-phase installation is provided by this device which electrically disconnects the vehicle from the live conductors of the supply and from protective earth within 5 s in the event of the utilisation voltage at the charging point, between the line and neutral conductors, being greater than 253 V rms or less than 207 V rms.
This device shall provide isolation and be selected in accordance with Table 537.4. Closing or resetting of the device shall be possible only if the voltage between line and neutral conductors is in the range 207 to 253 V rms.
